ENGINEERED STEEL
CORE RACK SYSTEMS
Built for Mineral Exploration. Engineered for Long-Term Core Storage.
8–10 MIN
Assembly, no special tools required
122 cm / 183 cm (48″ / 72″)
STAMPED
Engineered drawings included
An Engineered Alternative to Temporary Wood Storage
Korax Systems manufactures portable and stationary steel core rack systems designed for mineral exploration, drilling programs and long-term geological core storage.
Durable, modular and quick to assemble, Korax systems provide an efficient alternative to building temporary wooden core storage in the field.
Steel Construction
Welded and bolted
for decades of use.
Modular & Scalable
Expand your storage
as your program grows.
Certified Engineering
Supplied with stamped
engineering drawings.
Our Approach
Build For The Realities of Mineral Exploration
Exploration programs generate valuable geological core that needs to remain organized, accessible and protected—often for decades.
Korax Systems provides an engineered steel storage solution designed specifically for these environments. From temporary exploration camps to permanent core storage facilities, our modular systems can be configured and expanded as project requirements change.
- Fast & Simple Assembly
- Efficient Transportation
- Configurable to Your Project
- Proudly engineered and manufactured in Canada
Made in Canada
Engineered
Stamped Drawings
Every Korax system is supplied with engineered stamped drawings, giving your team documented engineering for its safety records and helping support workplace and regulatory safety requirements.
Benefits
Why Exploration Companies Choose Korax
Durable Steel Construction
Welded and bolted steel construction provides a durable, long-term alternative to temporary wooden core storage.
Fast & Simple Assembly
Each rack can be assembled in approximately 8–10 minutes, with no specialized tools required.
Efficient Transportation
Disassembled, manageable components make Korax systems practical to transport by truck, trailer or aircraft, including to remote exploration sites.
Configurable to
Your Project
Manufactured in different configurations and heights, including 48″ and 72″, to accommodate individual project requirements.
Modular &
Scalable
Racks can be installed side-by-side or end-to-end, allowing storage capacity to expand alongside your exploration or drilling program.
Engineered
Stamped Drawings
Supplied with engineered stamped drawings, providing documented engineering for your core storage infrastructure.
Portable or Stationary. One Modular System.
Built to Move
Portable Core Racks
Designed for exploration programs where transportation, rapid deployment and flexibility matter. Components ship disassembled and can be transported to remote project locations for assembly on site.
Built to Stay

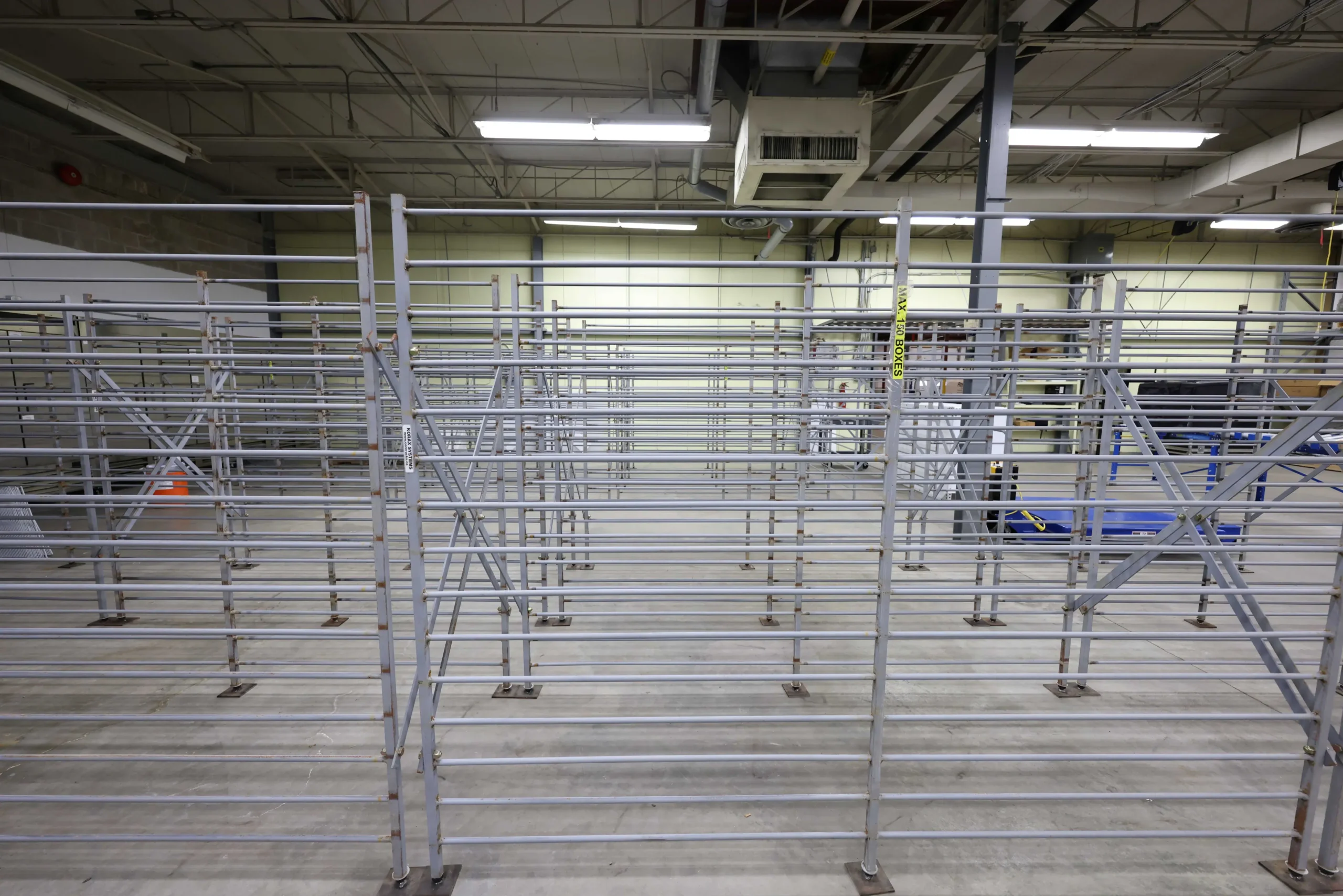

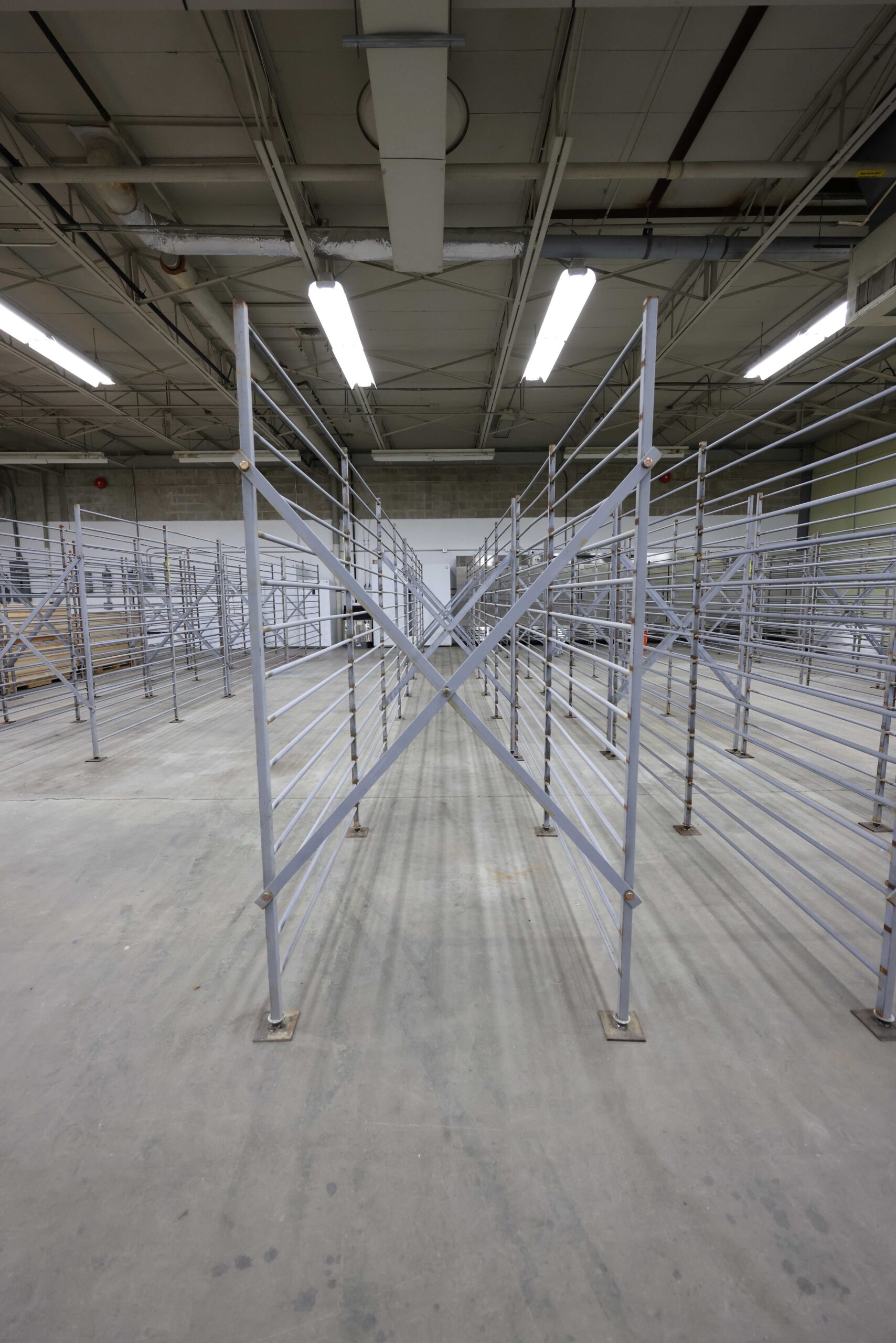

Stationary Core Storage

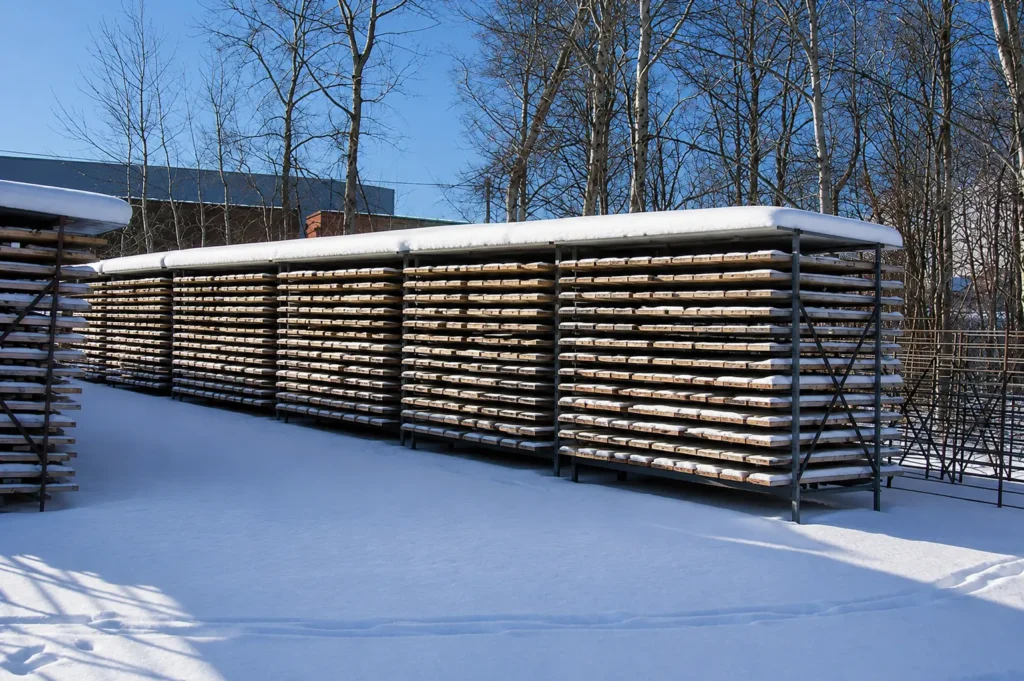

Create organized, permanent core storage by connecting Korax racks side-by-side and end-to-end. Systems can be configured for larger core storage facilities as requirements grow. Optional trusses can also be incorporated to create roofed or enclosed storage structures for demanding climates.
Built to Grow
From a Few Racks to a Complete Facility
One of the biggest advantages of the Korax system is scalability. Start with the storage capacity your current drill program requires and add additional racks as your core inventory grows. Modular configurations allow Korax systems to support everything from smaller exploration programs to large, long-term core storage facilities.
SPECIFICATIONS
Core Rack Models
 Four configurations built around two standard heights, each available in three bar spacings depending on core box size and volume.
| Spacing | Holds approx. | Weight |
|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 168 boxes | 131.1 kg289 lbs |
| 102 mm O.C.4″ O.C. | 144 boxes | 112.0 kg247 lbs |
| 114 mm O.C.4 1/2″ O.C. | 120 boxes | 92.5 kg204 lbs |
| Spacing | AQ | BQ | NQ |
|---|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 1,280 m4,200 ft | 1,024 m3,360 ft | — |
| 102 mm O.C.4″ O.C. | 1,097 m3,600 ft | 878 m2,880 ft | 658 m2,160 ft |
| 114 mm O.C.4 1/2″ O.C. | 914 m3,000 ft | 732 m2,400 ft | 549 m1,800 ft |
| Spacing | Holds approx. | Weight |
|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 224 boxes | 149.7 kg330 lbs |
| 102 mm O.C.4″ O.C. | 192 boxes | 131.1 kg289 lbs |
| 114 mm O.C.4 1/2″ O.C. | 160 boxes | 124.3 kg274 lbs |
| Spacing | AQ | BQ | NQ |
|---|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 1,707 m5,600 ft | 1,366 m4,480 ft | — |
| 102 mm O.C.4″ O.C. | 1,463 m4,800 ft | 1,170 m3,840 ft | 878 m2,880 ft |
| 114 mm O.C.4 1/2″ O.C. | 1,219 m4,000 ft | 975 m3,200 ft | 732 m2,400 ft |
| Spacing | Holds approx. | Weight |
|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 252 boxes | 178.3 kg393 lbs |
| 102 mm O.C.4″ O.C. | 216 boxes | 159.2 kg351 lbs |
| 114 mm O.C.4 1/2″ O.C. | 192 boxes | 141.1 kg311 lbs |
| Spacing | AQ | BQ | NQ |
|---|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 1,920 m6,300 ft | 1,536 m5,040 ft | — |
| 102 mm O.C.4″ O.C. | 1,646 m5,400 ft | 1,317 m4,320 ft | 988 m3,240 ft |
| 114 mm O.C.4 1/2″ O.C. | 1,463 m4,800 ft | 1,170 m3,840 ft | 878 m2,880 ft |
| Spacing | Holds approx. | Weight |
|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 336 boxes | 215.9 kg476 lbs |
| 102 mm O.C.4″ O.C. | 288 boxes | 175.5 kg387 lbs |
| 114 mm O.C.4 1/2″ O.C. | 225 boxes | 171.5 kg378 lbs |
| Spacing | AQ | BQ | NQ |
|---|---|---|---|
| 89 mm O.C.3 1/2″ O.C. | 2,560 m8,400 ft | 2,048 m6,720 ft | — |
| 102 mm O.C.4″ O.C. | 2,195 m7,200 ft | 1,756 m5,760 ft | 1,317 m4,320 ft |
| 114 mm O.C.4 1/2″ O.C. | 1,715 m5,625 ft | 1,372 m4,500 ft | 1,029 m3,375 ft |
Testimonials
Honest Reviews from
our Customers
David Gower
Noranda Exploration Company
“We find them to be very sturdy and cost effective. In particular we find their ease of assembly to be very convenient (10 minutes to erect). Storage of the unassembled core racks consumes very little space in our warehouse, and I would not hesitate to order more when our current inventory of racks is filled.”
J.A. Sauerbrei
Inco Gold Management Inc.
“We particularly like this core storage system because of its light weight and portability for field use.”
J. Langelaar
Norontex Exploration Ltd.
“Material and construction of the racks are excellent, whereas assembly is very fast: generally less than 15 minutes. In my opinion, there is not a comparable rack on the market which provides storage of core on the basis of ‘cost-per-foot’ cheaper than the Korax System.”
Planning a Drill Program or Core Storage Facility?
Tell us about your project, expected core volume, location and storage requirements. Korax Systems can help determine a rack configuration suited to your operation and provide a formal estimate.
